High Hardness Series
Solid carbide end mills engineered specifically for hardened steels from 45 HRC up to 55 HRC. TiSiNoS Pro coating delivers extreme wear resistance and thermal stability. Short and long series available.
45 HRC

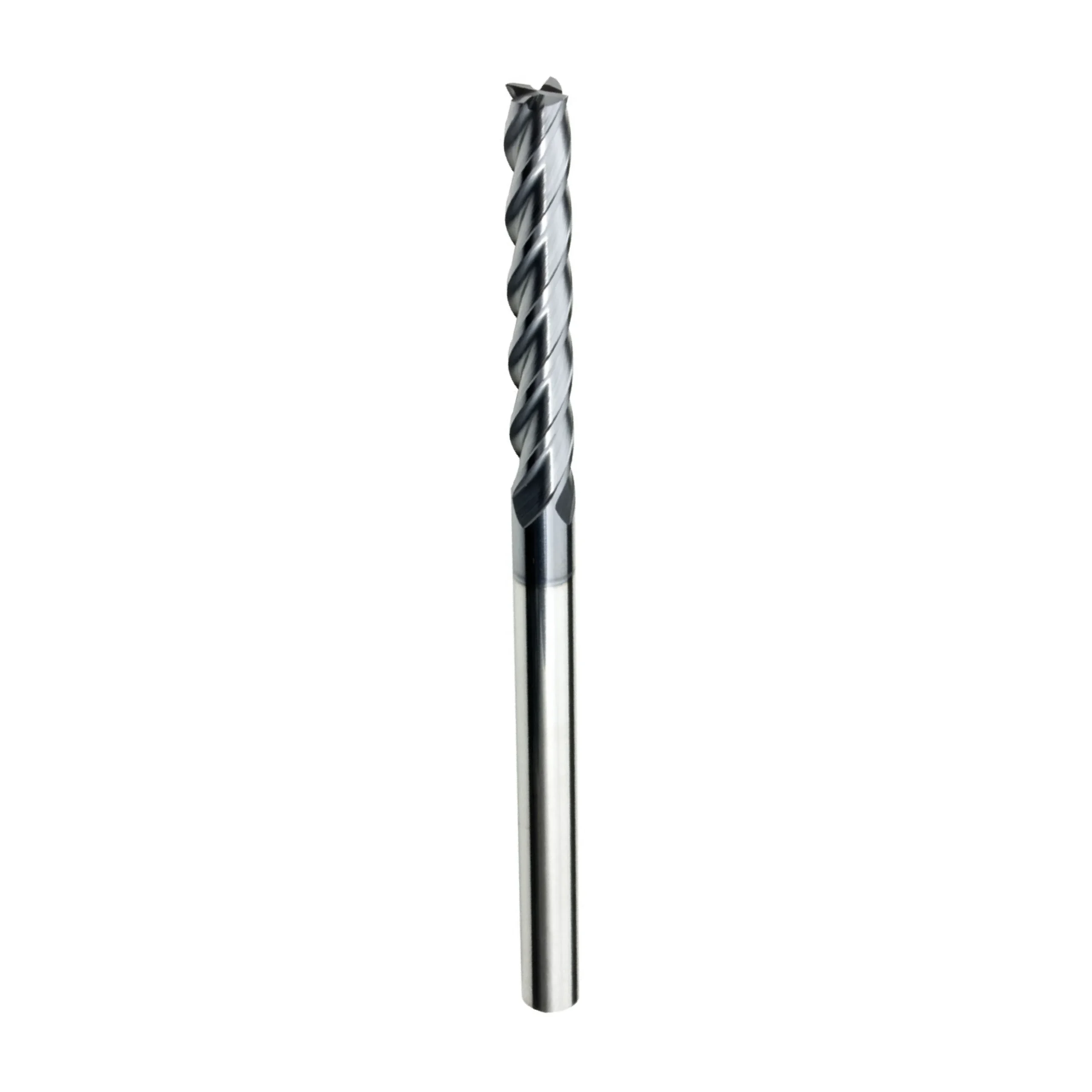

Long Series.
45 HRC long-series end mills, 4-flute square, Ø3–25mm. Engineered for hardened steels up to 45 HRC. Long series geometry enables machining in deep cavities and pockets in hardened tool steels.
| Item Code (Bright) | Item Code (Ti(A)LN) | DIA mm | SD mm | LOC mm | OAL mm |
|---|---|---|---|---|---|
| SIM13M3.00 | SIM13M3.00TLC | 3 | 3 | 25 | 75 |
| SIM13M4.00 | SIM13M4.00TLC | 4 | 4 | 25 | 75 |
| SIM13M5.00 | SIM13M5.00TLC | 5 | 5 | 25 | 75 |
| SIM13M6.00 | SIM13M6.00TLC | 6 | 6 | 25 | 75 |
| SIM13M8.00 | SIM13M8.00TLC | 8 | 8 | 25 | 75 |
| SIM13M10.00 | SIM13M10.00TLC | 10 | 10 | 38 | 100 |
| SIM13M12.00 | SIM13M12.00TLC | 12 | 12 | 50 | 100 |
| SIM13M14.00 | SIM13M14.00TLC | 14 | 14 | 75 | 150 |
| SIM13M16.00 | SIM13M16.00TLC | 16 | 16 | 75 | 150 |
| SIM13M18.00 | SIM13M18.00TLC | 18 | 18 | 75 | 150 |
| SIM13M20.00 | SIM13M20.00TLC | 20 | 20 | 75 | 150 |
| SIM13M25.00 | SIM13M25.00TLC | 25 | 25 | 75 | 150 |
LOC = Length of Cut · OAL = Overall Length
55 HRC

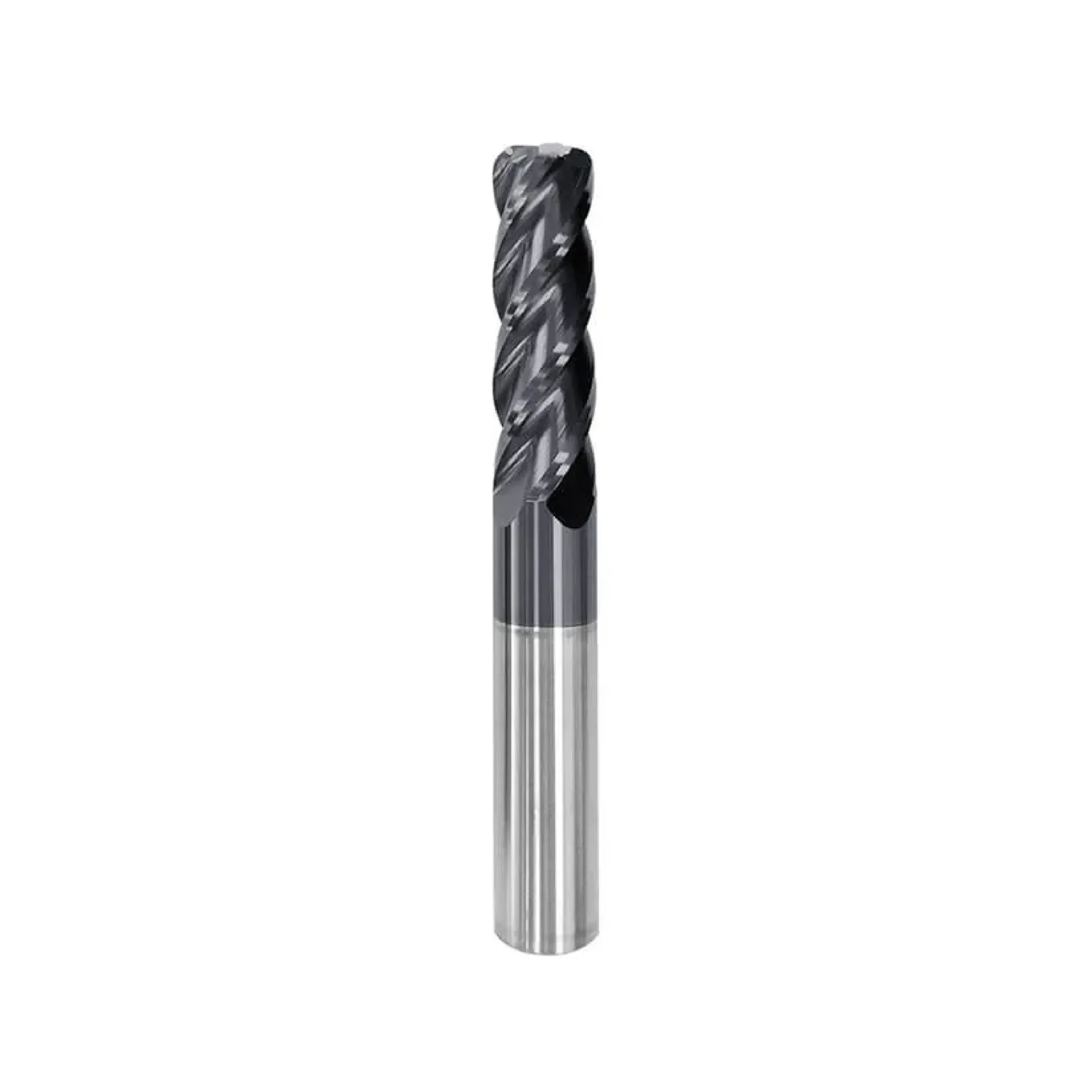

Short Series.
Solid carbide end mills for hardened steels up to 55 HRC. TiSiNoS Pro coating for extreme thermal and wear performance. Short series for maximum rigidity in die cavity finishing and precision toolroom work.
| Product Code | D mm | SD mm | L1 mm | L mm | CR mm | D2 mm | L2 mm |
|---|---|---|---|---|---|---|---|
| SIM18M3.00TSNP | 3 | 6 | 5 | 55 | 0.5 | 2.8 | 10 |
| SIM18M4.00TSNP | 4 | 6 | 6 | 55 | 0.5 | 3.8 | 12 |
| SIM18M6.00TSNP | 6 | 6 | 8 | 55 | 0.5 | 5.8 | 16 |
| SIM18M8.00TSNP | 8 | 8 | 11 | 65 | 1 | 7.7 | 24 |
| SIM18M10.00TSNP | 10 | 10 | 13 | 75 | 1 | 9.7 | 30 |
| SIM18M12.00TSNP | 12 | 12 | 15 | 85 | 1 | 11.7 | 30 |
| SIM18M16.00TSNP | 16 | 16 | 21 | 90 | 1 | 15.6 | 40 |
| SIM18M20.00TSNP | 20 | 20 | 25 | 100 | 2 | 19.6 | 40 |
D = Cutting Diameter · SD = Shank Diameter · L1 = Cutting Length · L = Overall Length · CR = Corner Radius · D2 = Neck Diameter · L2 = Neck Length
55 HRC

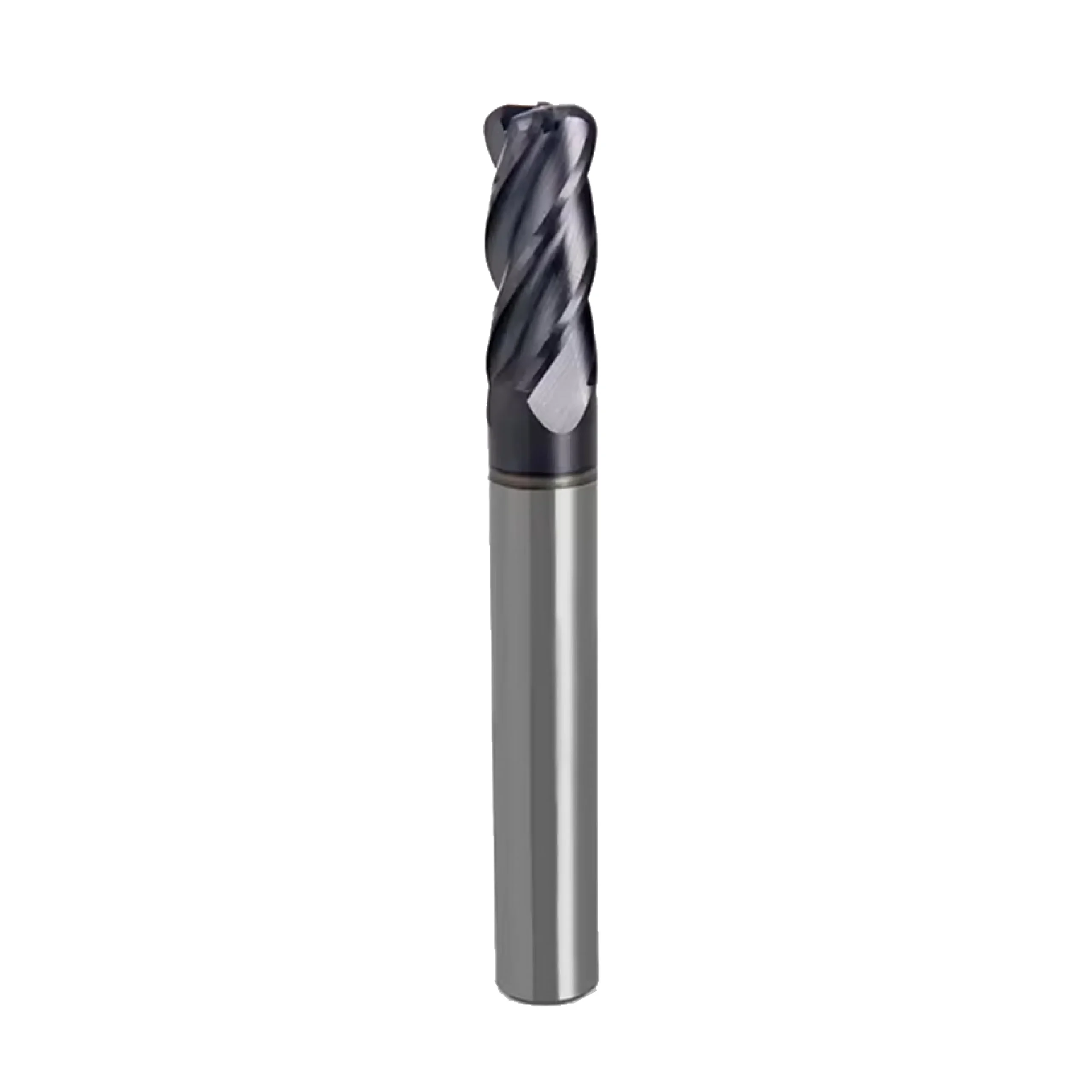

Long Series.
Solid carbide end mills for hardened steels up to 55 HRC. TiSiNoS Pro coating — long series. Extended reach for deeper cavity machining in hardened tool steels while maintaining 55 HRC capability.
| Product Code | D mm | SD mm | L1 mm | L mm | CR mm |
|---|---|---|---|---|---|
| SIM19M6.00TSNP | 6 | 6 | 13 | 57 | 0.5 |
| SIM19M8.00TSNP | 8 | 8 | 19 | 63 | 1 |
| SIM19M10.00TSNP | 10 | 10 | 22 | 72 | 1 |
| SIM19M12.00TSNP | 12 | 12 | 26 | 80 | 1 |
| SIM19M14.00TSNP | 14 | 14 | 26 | 83 | 1 |
| SIM19M16.00TSNP | 16 | 16 | 32 | 92 | 1 |
| SIM19M18.00TSNP | 18 | 18 | 32 | 92 | 1.2 |
| SIM19M20.00TSNP | 20 | 20 | 38 | 104 | 1.2 |
D = Cutting Diameter · SD = Shank Diameter · L1 = Cutting Length · L = Overall Length · CR = Corner Radius
For special requirements, talk to us.
We work with customers to deliver special, customised solid carbide tools to drawing. Reach out to our technical sales desk — we deliver to drawing.
