Solid Carbide Drills

Jobber drills (L/D 8, Ø1–20mm) and stub drills (L/D 5, Ø3–20mm) in 0.1mm increments. Bright and Ti(A)LN coated. Consistent hole quality and precision in steel, stainless, cast iron and aluminium.

SIMJ · Jobber Drill

Jobber Drills
L/D 8.

Solid carbide jobber drills, length/diameter ratio 8. Range Ø1–20mm in 0.1mm increments. Bright and Ti(A)LN coated. For precision drilling in steel, stainless steel, cast iron, and general engineering materials.

Ø1–20mm L/D Ratio 8 0.1mm Increments ISO P · K · M · N MOQ 10pcs (3–8mm) / 5pcs (8mm+)
Available Variants
Bright (Uncoated) Ti(A)LN Coated
Applications
General precision drilling, through-hole drilling in steel and stainless, automotive component drilling, jig boring. L/D 8 ratio is the standard jobber length suitable for the majority of production drilling applications.

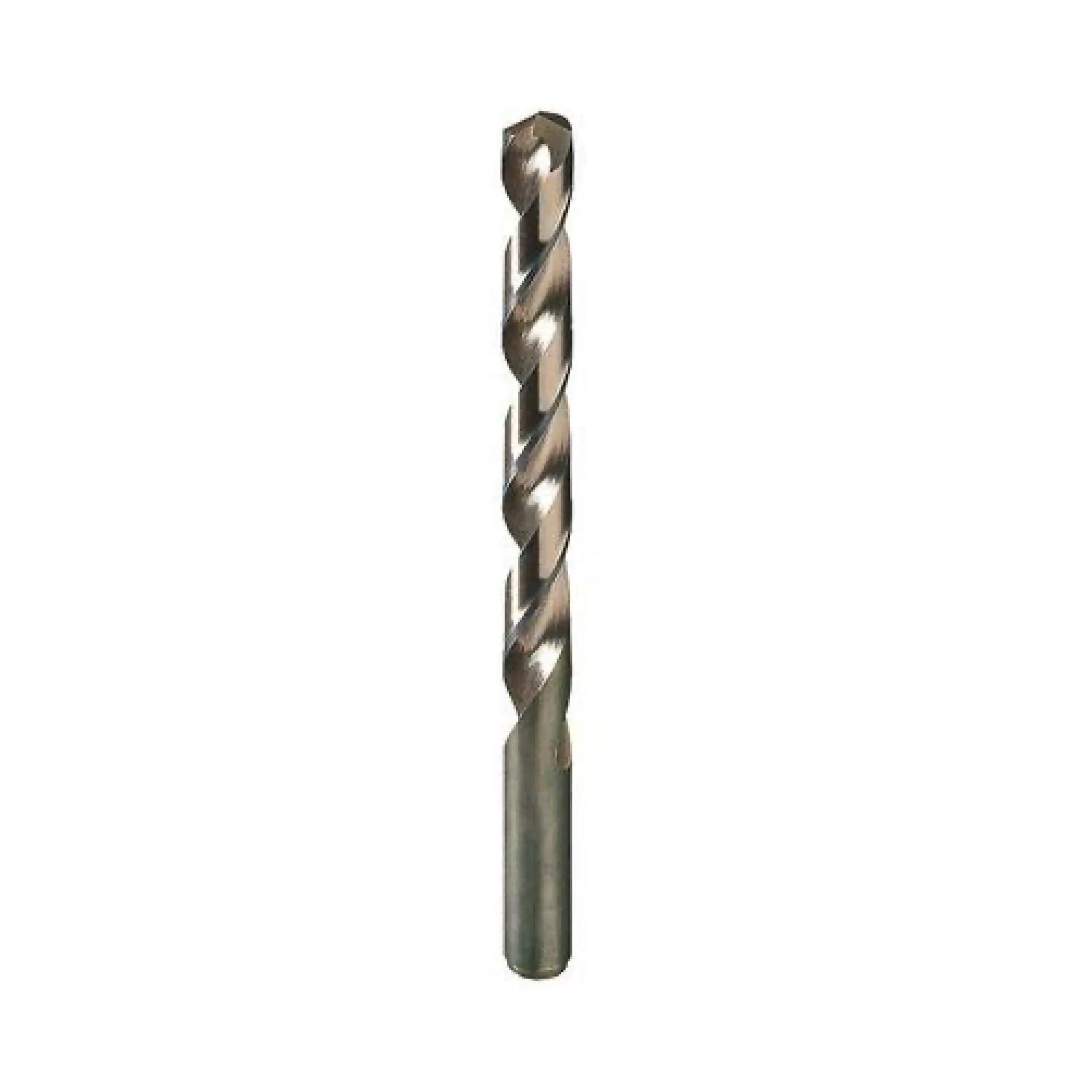

SIMJ Jobber Drills product image
Ø1–2mm
Fine Range
Ø2–5mm
Small Range
Ø5–10mm
Mid Range
Ø10–20mm
Large Range
Filter by size Enter diameter (1.0–20.0 mm) and click Filter. 190+ SKUs available. Contact us for sizes not shown below.
No displayed catalogue row matches this exact size. Please contact us for intermediate 0.1mm sizes.
Code (Bright)Code (Ti(A)LN) DIA mmSD mmFL mmOAL mm
SIMJM1.00SIMJM1.00TLC1.01.01334
SIMJM1.10SIMJM1.10TLC1.11.11536
SIMJM1.20SIMJM1.20TLC1.21.21738
SIMJM1.30SIMJM1.30TLC1.31.31738
SIMJM1.40SIMJM1.40TLC1.41.41940
SIMJM1.50SIMJM1.50TLC1.51.51940
SIMJM1.60SIMJM1.60TLC1.61.62143
SIMJM1.70SIMJM1.70TLC1.71.72143
SIMJM1.80SIMJM1.80TLC1.81.82346
SIMJM1.90SIMJM1.90TLC1.91.92346
SIMJM2.00SIMJM2.00TLC2.02.02449
SIMJM2.10SIMJM2.10TLC2.12.12449
SIMJM2.20SIMJM2.20TLC2.22.22753
SIMJM2.30SIMJM2.30TLC2.32.32753
SIMJM2.40SIMJM2.40TLC2.42.43057
SIMJM2.50SIMJM2.50TLC2.52.53057
SIMJM2.60SIMJM2.60TLC2.62.63057
SIMJM2.70SIMJM2.70TLC2.72.73361
SIMJM2.80SIMJM2.80TLC2.82.83361
SIMJM2.90SIMJM2.90TLC2.92.93361
SIMJM3.00SIMJM3.00TLC3.03.03361
SIMJM3.20SIMJM3.20TLC3.23.23665
SIMJM3.50SIMJM3.50TLC3.53.53970
SIMJM4.00SIMJM4.00TLC4.04.04375
SIMJM4.50SIMJM4.50TLC4.54.54780
SIMJM5.00SIMJM5.00TLC5.05.05286
SIMJM5.50SIMJM5.50TLC5.55.55793
SIMJM6.00SIMJM6.00TLC6.06.05793
SIMJM6.50SIMJM6.50TLC6.56.563101
SIMJM7.00SIMJM7.00TLC7.07.069109
SIMJM7.50SIMJM7.50TLC7.57.569109
SIMJM8.00SIMJM8.00TLC8.08.075117
SIMJM8.50SIMJM8.50TLC8.58.575117
SIMJM9.00SIMJM9.00TLC9.09.081125
SIMJM9.50SIMJM9.50TLC9.59.581125
SIMJM10.00SIMJM10.00TLC10.010.087133
SIMJM10.50SIMJM10.50TLC10.510.587133
SIMJM11.00SIMJM11.00TLC11.011.094142
SIMJM11.50SIMJM11.50TLC11.511.594142
SIMJM12.00SIMJM12.00TLC12.012.0101151
SIMJM12.50SIMJM12.50TLC12.512.5101151
SIMJM13.00SIMJM13.00TLC13.013.0101151
SIMJM13.50SIMJM13.50TLC13.513.5108160
SIMJM14.00SIMJM14.00TLC14.014.0108160
SIMJM14.50SIMJM14.50TLC14.514.5114169
SIMJM15.00SIMJM15.00TLC15.015.0114169
SIMJM16.00SIMJM16.00TLC16.016.0120178
SIMJM17.00SIMJM17.00TLC17.017.0125184
SIMJM18.00SIMJM18.00TLC18.018.0130191
SIMJM19.00SIMJM19.00TLC19.019.0135198
SIMJM20.00SIMJM20.00TLC20.020.0140205

Representative sizes shown. Full range available in 0.1mm increments Ø1.0–20.0mm (190+ SKUs). Contact us for intermediate sizes. All prices in INR, ex-GST. Valid 30 days.

SIMS · Stub Drill

Stub Drills
L/D 5.

Solid carbide stub drills, length/diameter ratio 5. Range Ø3–20mm in 0.1mm increments. Bright and Ti(A)LN coated. Shorter flute length gives increased rigidity — preferred for thin workpieces, cross-drilling, and applications requiring greater positional accuracy.

Ø3–20mm L/D Ratio 5 0.1mm Increments High Rigidity ISO P · K · M · N MOQ 10pcs (3–8mm) / 5pcs (8mm+)
Available Variants
Bright (Uncoated) Ti(A)LN Coated
Applications
Thin workpiece drilling, cross-drilling, precision spot drilling, high-rigidity applications where deflection must be minimised. Shorter OAL versus jobber series reduces vibration and improves hole positional accuracy.

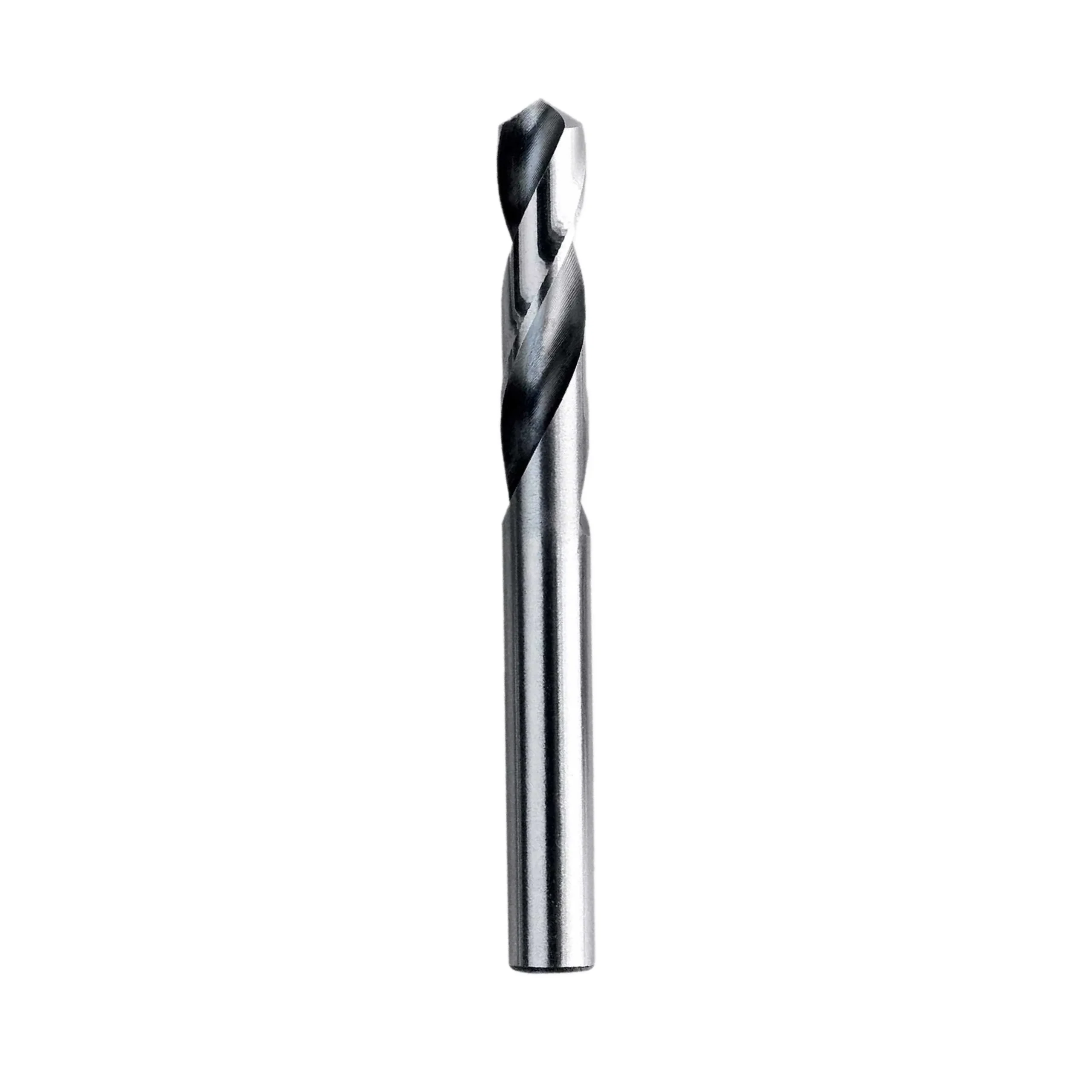

SIMS Stub Drills product image
Ø3–5mm
Small Range
Ø5–8mm
Mid Range
Ø8–13mm
Standard Range
Ø13–20mm
Large Range
Bright from ₹12,793
Code (Bright)Code (Ti(A)LN) DIA mmSD mmFL mmOAL mm
SIMSM3.00SIMSM3.00TLC3.03.01646
SIMSM3.50SIMSM3.50TLC3.53.52052
SIMSM4.00SIMSM4.00TLC4.04.02255
SIMSM4.50SIMSM4.50TLC4.54.52458
SIMSM5.00SIMSM5.00TLC5.05.02662
SIMSM5.50SIMSM5.50TLC5.55.52866
SIMSM6.00SIMSM6.00TLC6.06.02866
SIMSM6.50SIMSM6.50TLC6.56.53170
SIMSM7.00SIMSM7.00TLC7.07.03474
SIMSM7.50SIMSM7.50TLC7.57.53474
SIMSM8.00SIMSM8.00TLC8.08.03779
SIMSM8.50SIMSM8.50TLC8.58.53779
SIMSM9.00SIMSM9.00TLC9.09.04084
SIMSM9.50SIMSM9.50TLC9.59.54084
SIMSM10.00SIMSM10.00TLC10.010.04389
SIMSM10.50SIMSM10.50TLC10.510.54389
SIMSM11.00SIMSM11.00TLC11.011.04795
SIMSM11.50SIMSM11.50TLC11.511.54795
SIMSM12.00SIMSM12.00TLC12.012.051102
SIMSM12.50SIMSM12.50TLC12.512.551102
SIMSM13.00SIMSM13.00TLC13.013.051102
SIMSM13.50SIMSM13.50TLC13.513.554107
SIMSM14.00SIMSM14.00TLC14.014.054107
SIMSM14.50SIMSM14.50TLC14.514.556111
SIMSM15.00SIMSM15.00TLC15.015.056111
SIMSM15.50SIMSM15.50TLC15.515.558115
SIMSM16.00SIMSM16.00TLC16.016.058115
SIMSM16.50SIMSM16.50TLC16.516.560119
SIMSM17.00SIMSM17.00TLC17.017.060119
SIMSM17.50SIMSM17.50TLC17.517.562123
SIMSM18.00SIMSM18.00TLC18.018.062123
SIMSM18.50SIMSM18.50TLC18.518.564127
SIMSM19.00SIMSM19.00TLC19.019.064127
SIMSM20.00SIMSM20.00TLC20.020.066131

Representative sizes shown. Full range available in 0.1mm increments Ø3.0–20.0mm. All prices in INR, ex-GST. Valid 30 days.

For special requirements, talk to us.

We work with customers to deliver special, customised solid carbide tools to drawing. Reach out to our technical sales desk — we deliver to drawing.
